Product Overview
| BALL VALVES | |
|---|---|
| [A] C. I. BALL VALVES | |
| MANUFACTURING STANDARD | BS - 5351 (ANSI CLASS - 150) |
| TESTING STANDARD | BS - 5146 |
| END CONNECTION | SCREW END FLANGE END ANSI B 16.5 RF |
| MOC | IS - 210 - Grade - FG 200 (Cast Iron) |

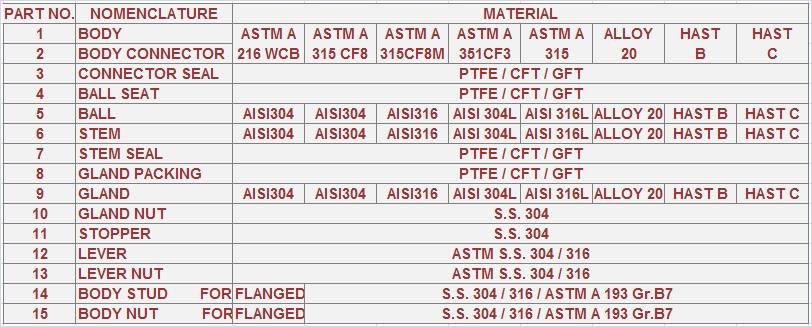

| Working Parts | |
| Ball | ASTM - A - 351 Grade CF8 ( S.S. 304) |
| Steam | AISI Grade S.S 304(CF8) |
| Seat & Seal | 100% P.T.F.E. |
| Working Pressure | TESTED AT |
| Screw end - ½ to 2" | 30 - 35 kg/cm² |
| Flange end - ½ to 6" | 30 - 35 kg/cm² { 1 kg/cm² = 14.7 1bs.} |

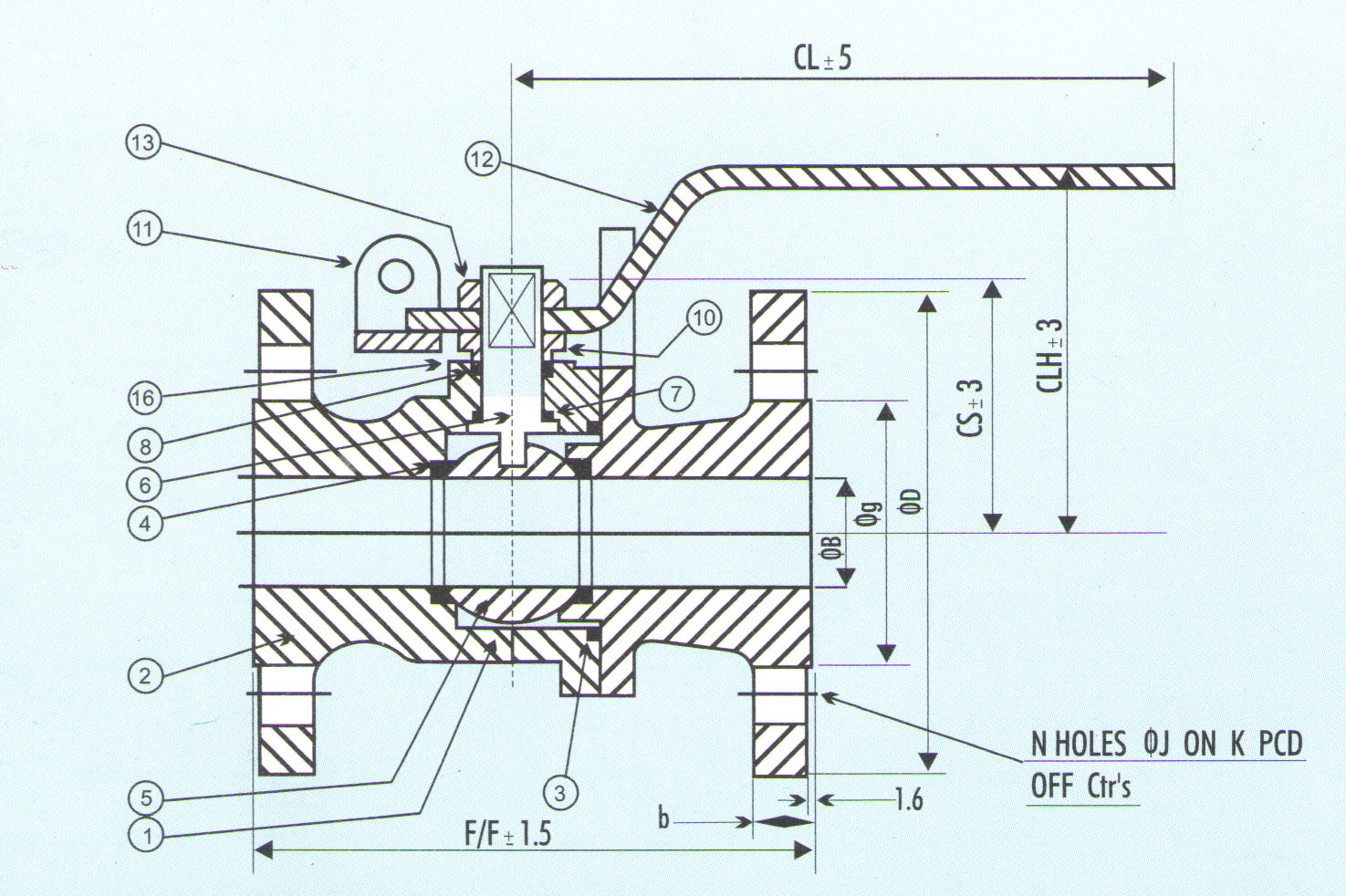

| Construction | SINGLE PIECE DESIGN, TWO PIECE DESIGN, FULL BORE, BLOW OUT PROOF STEM FLOATING BALL, LOCKING DEVICE IN TWO PIECE DESIGN. |
| BALL VALVES | |
|---|---|
| [B] INVESTMENT CASTING BALL VALVES | |
| MANUFACTURING STANDARD | BS - 5351 (ANSI CLASS-150) |
| TESTING STANDARD | BS - 5146 |
| END CONNECTION | SCREW END FLANGE END ANSI B 16.5 RF |
| MOC | AS PER ASTM - A - 351 GRADE CF8M (S.S. 316), |
| Working Parts | |
| Ball | ASTM - A - 351 Grade CF8M ( S.S. 316), |
| Steam | AISI Grade S.S 316(CF8M), |
| Seat & Seal | 100% P.T.F.E. Teflon. |
| Working Pressure | TESTED AT |
| Screw end - ½ to 2" | 30 - 40 kg/cm² |
| Flange end - ½ to 6" | 30 - 40 kg/cm² |
| Construction | SINGLE PIECE DESIGN, TWO PIECE DESIGN, FULL BORE, BLOW OUT PROOF STEM FLOATING BALL, LOCKING DEVICE IN TWO PIECE DESIGN. OUR SPECIAL DESIGN (UNIVERSAL GROOVE) IS SUITABLE IN ALL TABLE. ( ASA-150 ; D/F/E-TABLE ) |
| NOTES | At Present we are suppling Ball in CF8M in our Ball Valves. However we aslo can supply CN7M (Alloy 20) As per your requirement. |
